10AP 10,000‐lb. Capacity / Adaptable Clearfloor / Adjustable Width / Screw Pads

The 10AP is a lift with a 10,000 lb. capacity, adaptable clearfloor design, adjustable width, and screw pads. This lift is designed for lifting vehicles for maintenance and repair purposes.

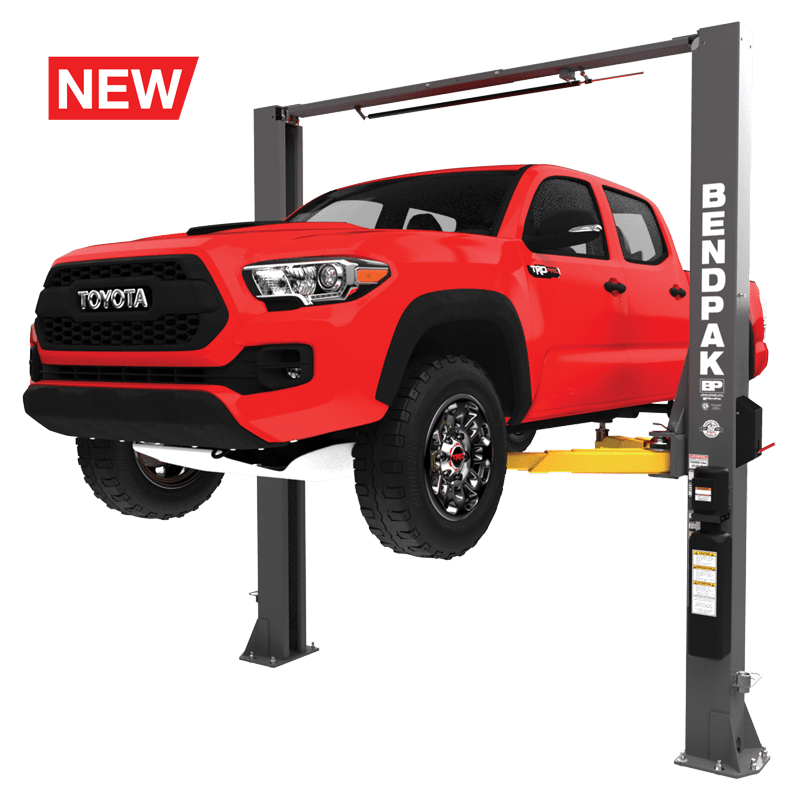

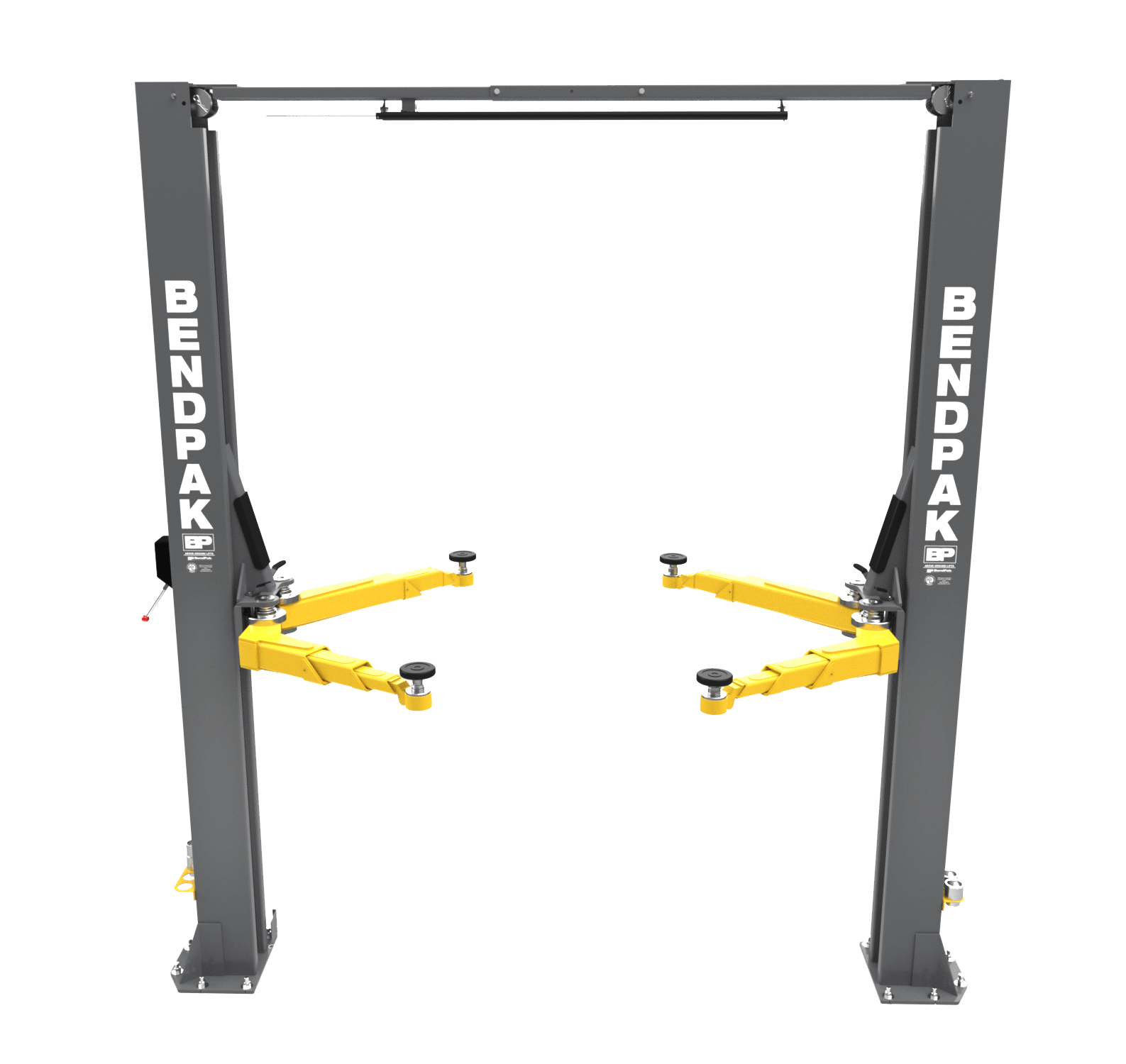

Professional Two-Post Clearfloor Lift

10AP 10,000 lb Capacity Lift

Built for serious garages and professional repair shops, the 10AP combines heavy-duty 10,000 lb lifting power, adaptable clearfloor access, adjustable width installation, screw pads, and advanced safety systems for confident daily use.

10,000

lb Capacity

Professional lifting strength for cars, trucks, and SUVs.

73″

Rise + Pad

Excellent working height for maintenance and repair.

45s

Full Rise Time

Fast, efficient lifting for busy shop workflows.

ALI

Certified

Built around professional safety expectations.

Engineered for serious lifting

Clearfloor Access. Adjustable Width. Professional Safety.

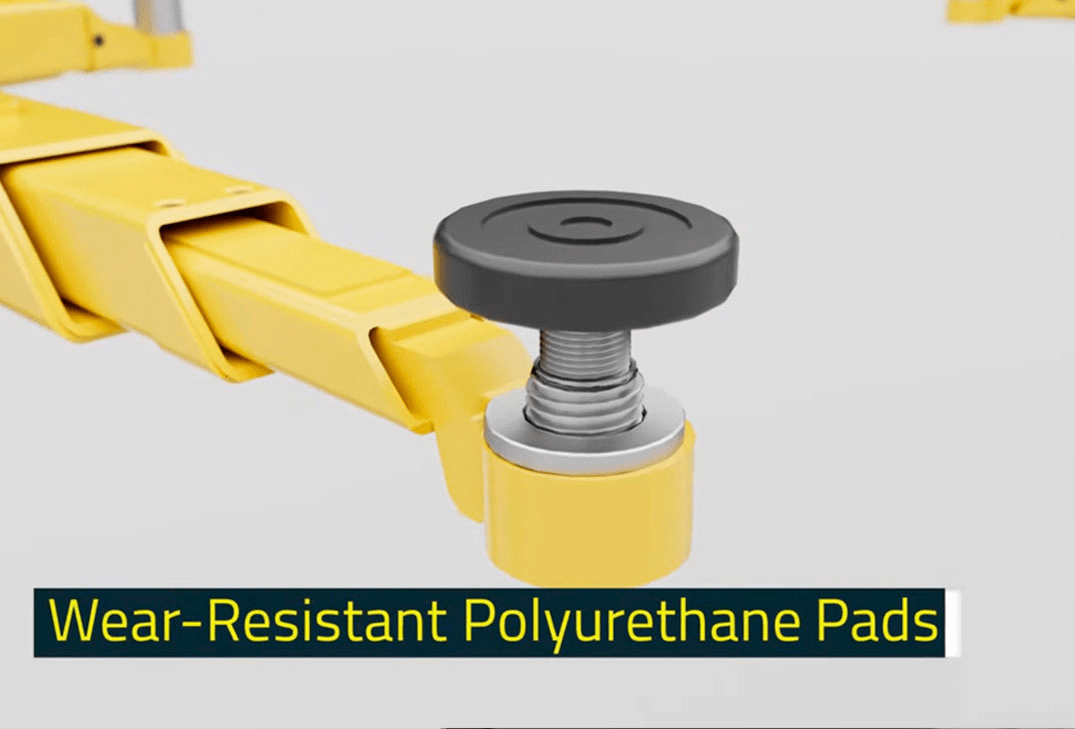

The adaptable clearfloor design gives technicians easier access to the vehicle undercarriage, while the expandable top beam supports wide or narrow drive-thru configurations. Double-telescoping screw pads add extra versatility and stability during lifting.

↔

Adjustable Installation Width
Overall width: 135″ or 145″

🛡

Safety Locks Every 3″
Added confidence during vehicle service.

⚙

Dual Direct-Drive Cylinders
Smooth hydraulic lifting performance.

Premium Features

Built for Performance & Durability

🔩

Heavy-Duty Construction

Oversized 53″ and 59″ tall carriages deliver superior strength and long-term durability.

🚗

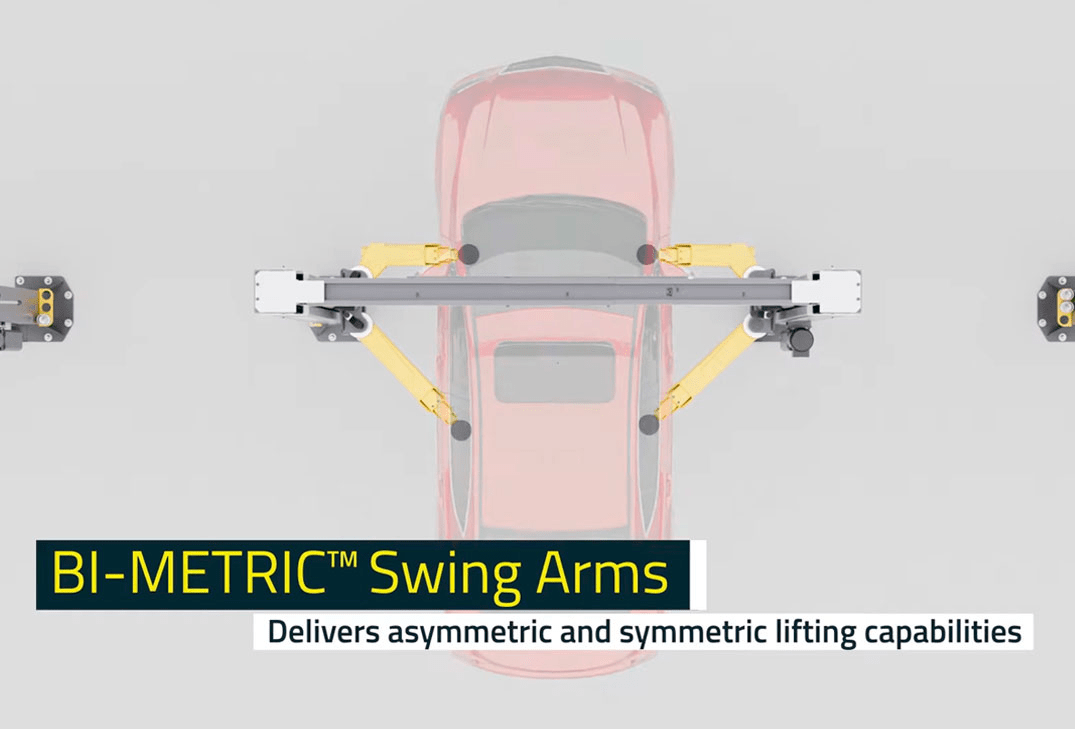

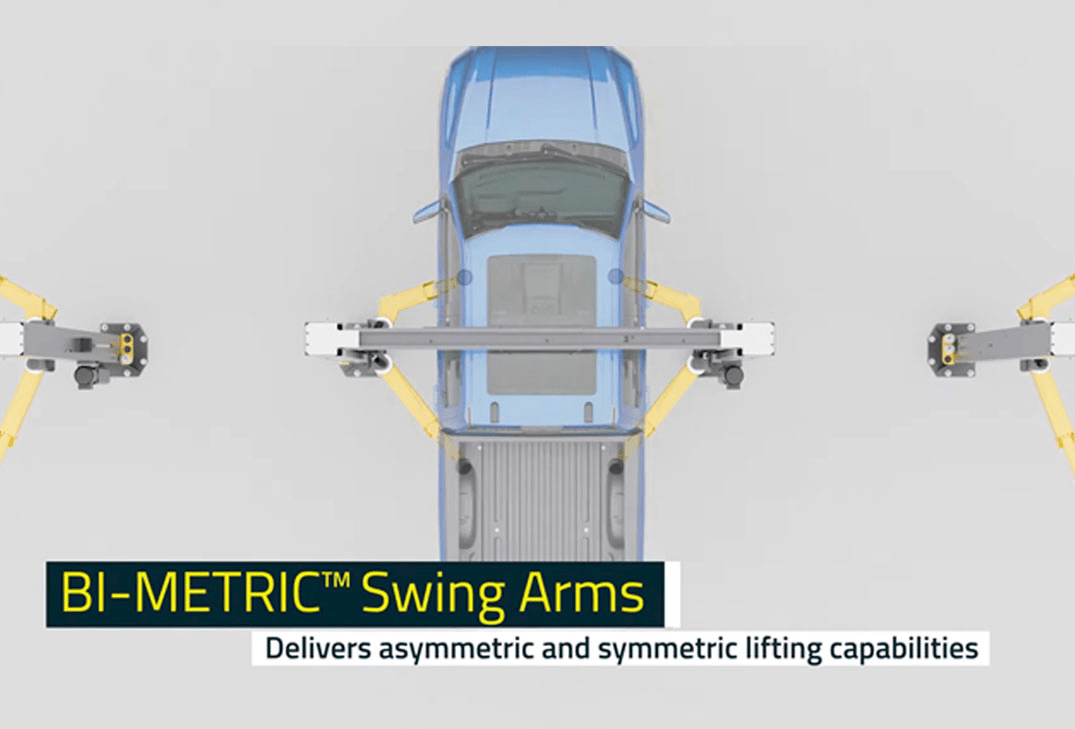

Bi-Metric™ Arm Design

Exclusive arm design allows more versatile arm positioning across different vehicle types.

🧰

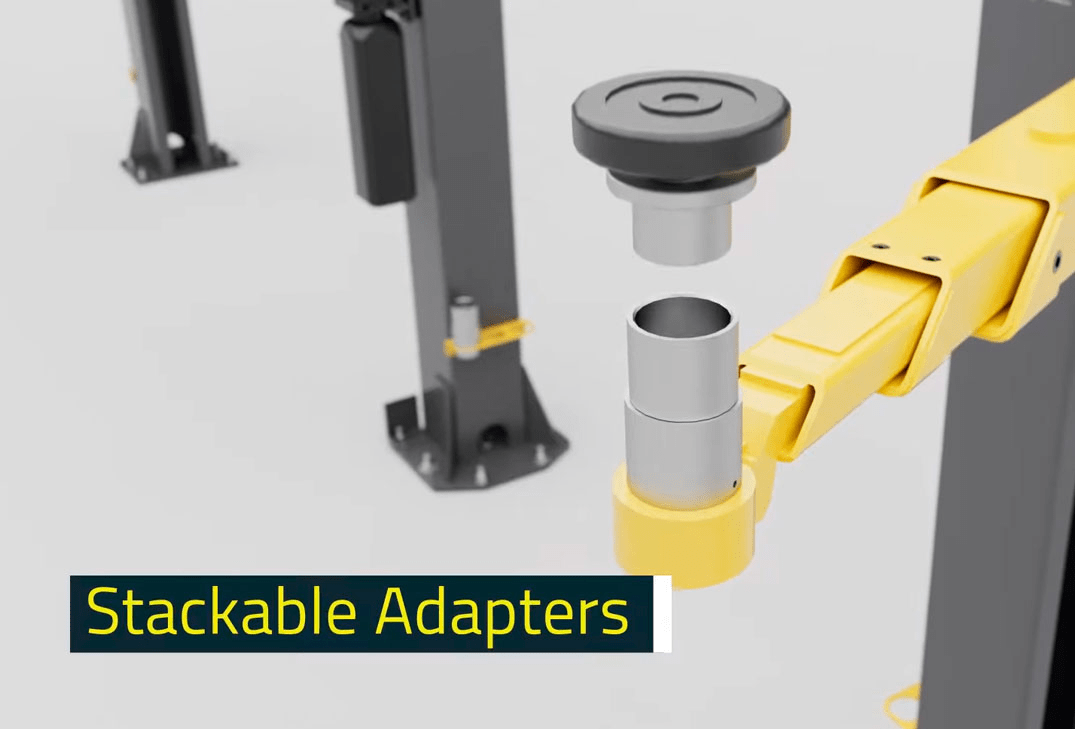

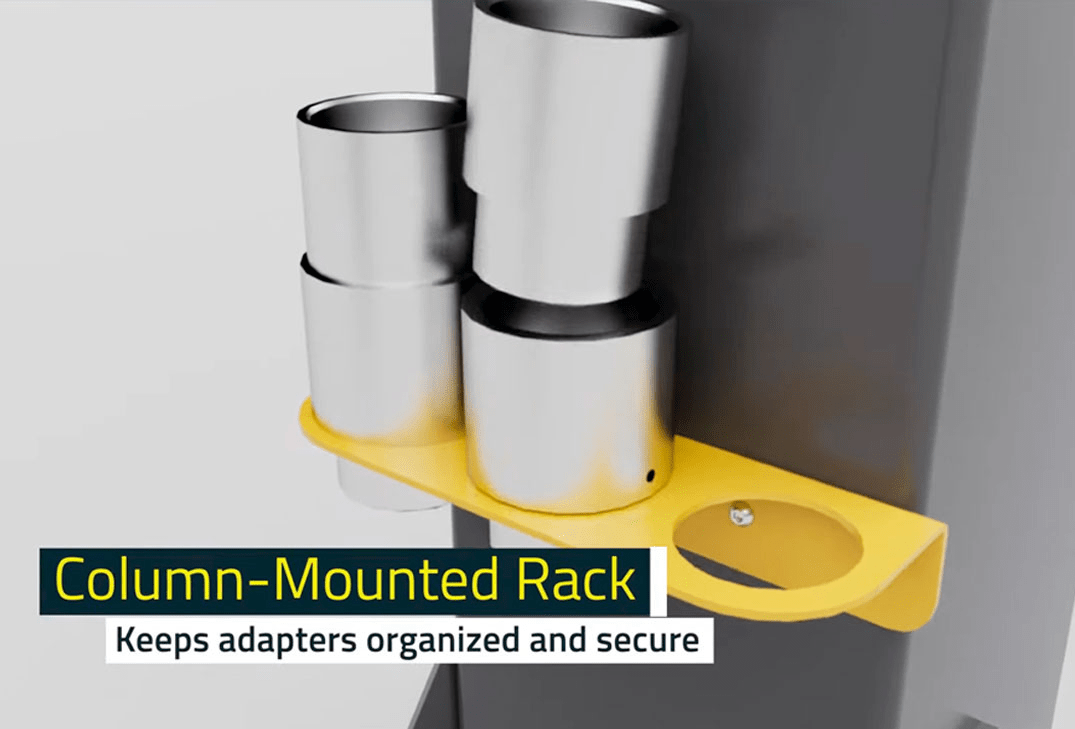

14-Piece Adapter Set

Includes a standard adapter set for improved lifting flexibility and shop readiness.

⚡

220V Power Unit

Electric / hydraulic HVLP power system with 220 VAC, 60 Hz, single-phase motor.

🛞

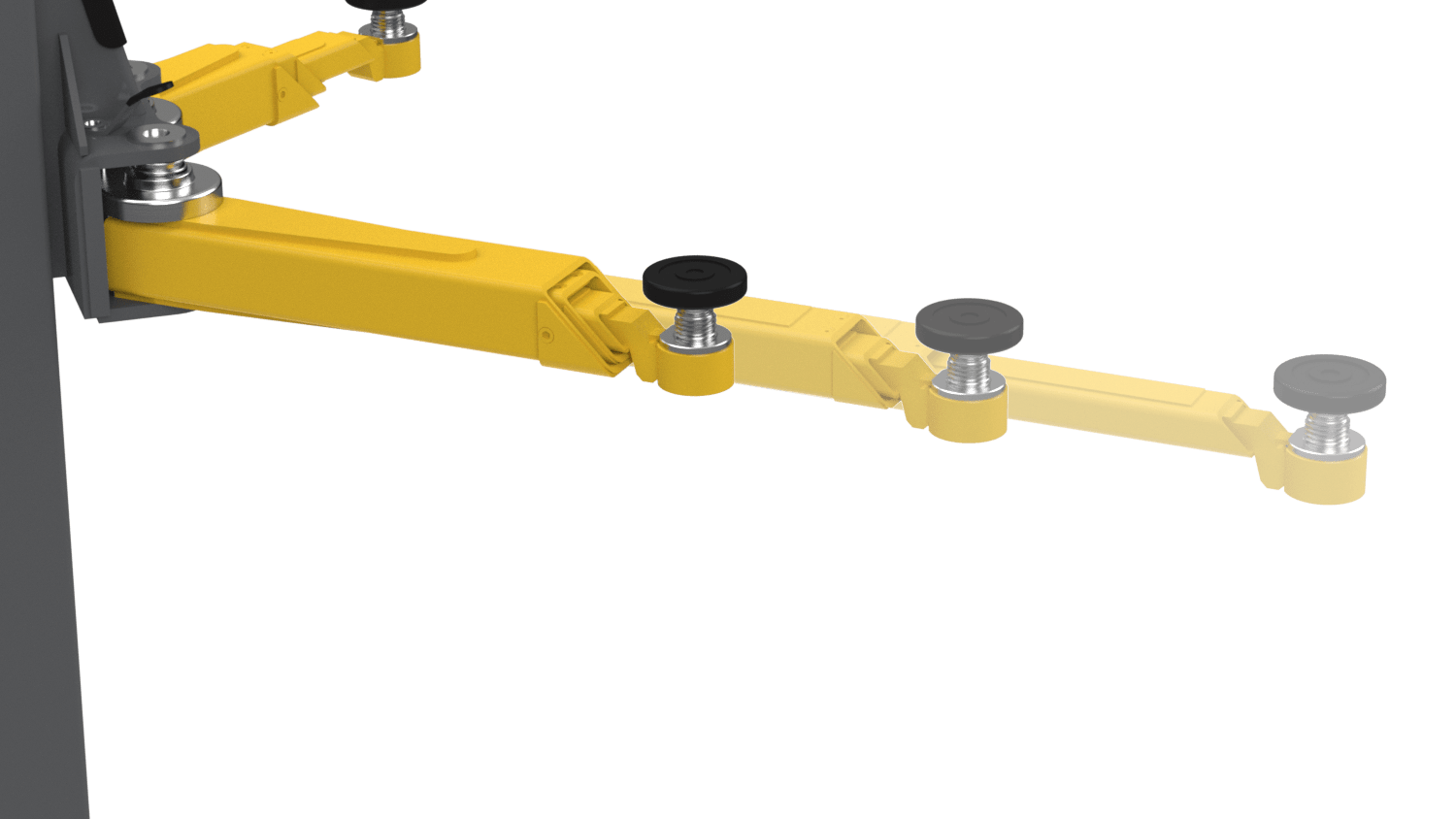

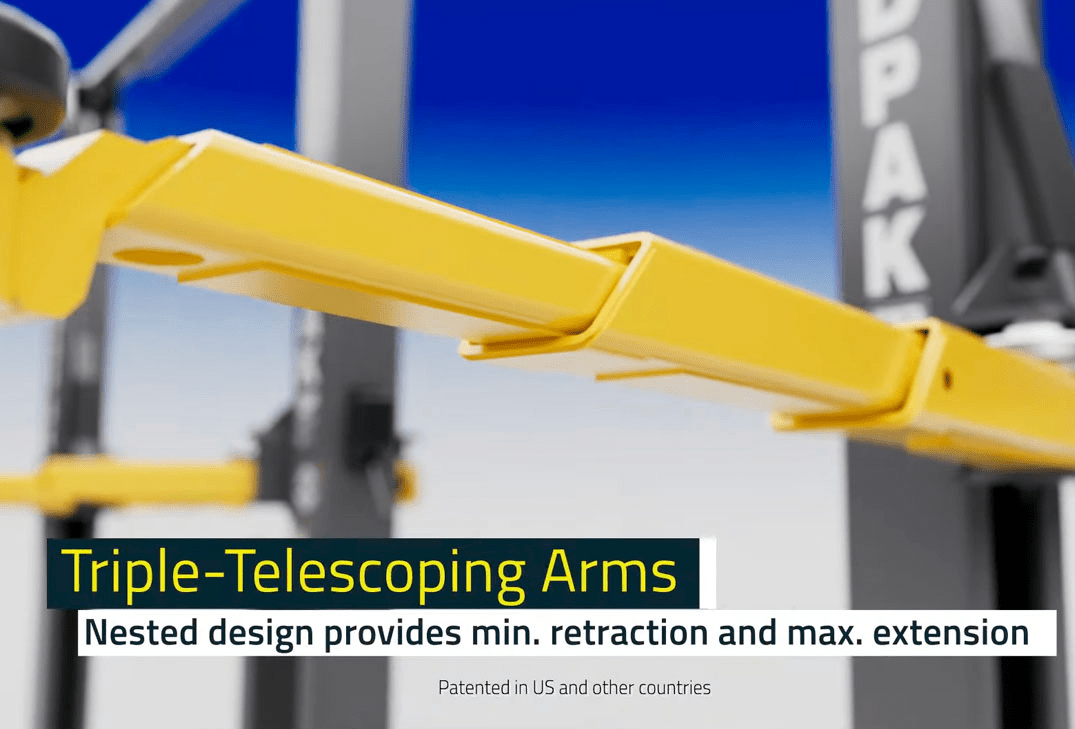

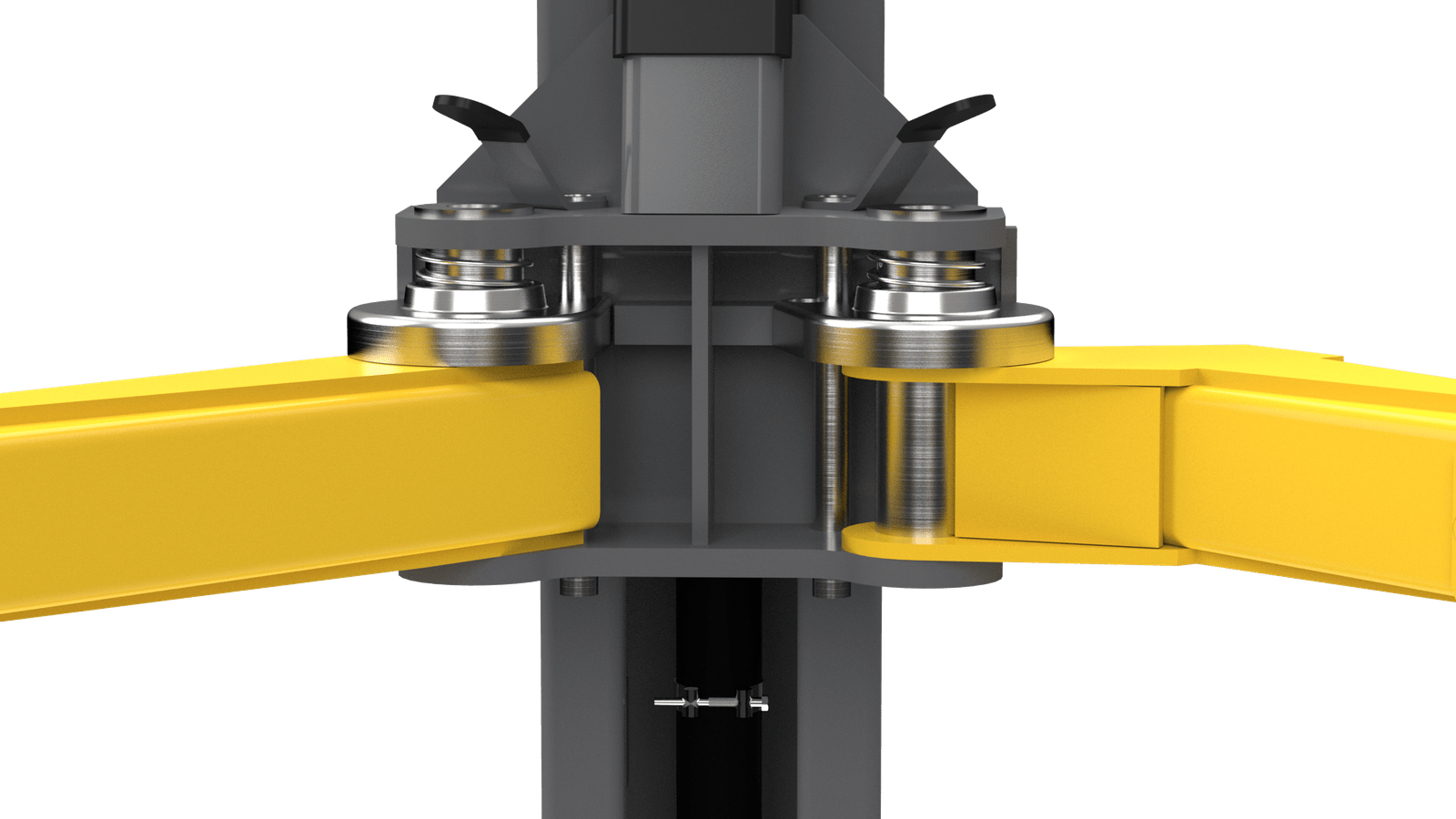

Triple-Telescoping Arms

Four triple-telescoping arms improve reach and vehicle positioning versatility.

✅

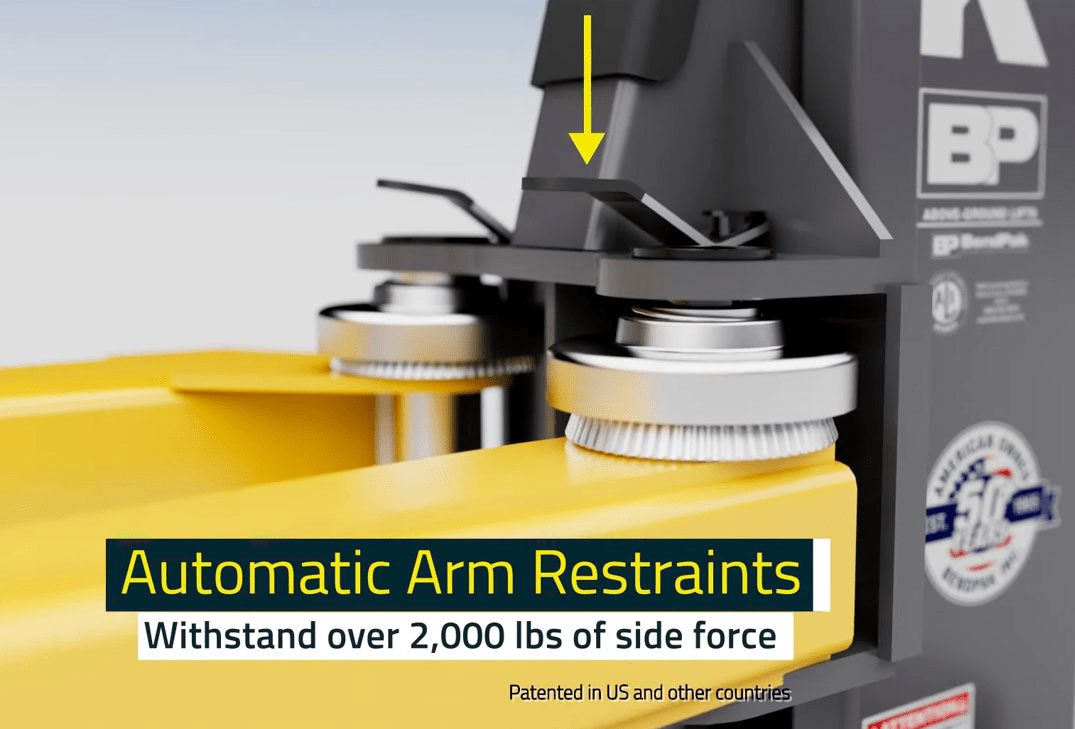

Automatic Arm Restraints

Arm restraints withstand over 2,000 pounds of side force for enhanced stability.

Technical Specifications

10AP Product Specs

Category	Specification	Value
Capacity	Lifting Capacity	10,000 lbs. / 4,536 kg
Capacity	Max Front Axle / Rear Axle	5,000 lbs. / 5,000 lbs.
Rise	Rise / Rise + Pad	69″ / 73″
Rise	Rise + Pad + 63 mm Adapter	82.5″ / 2,096 mm

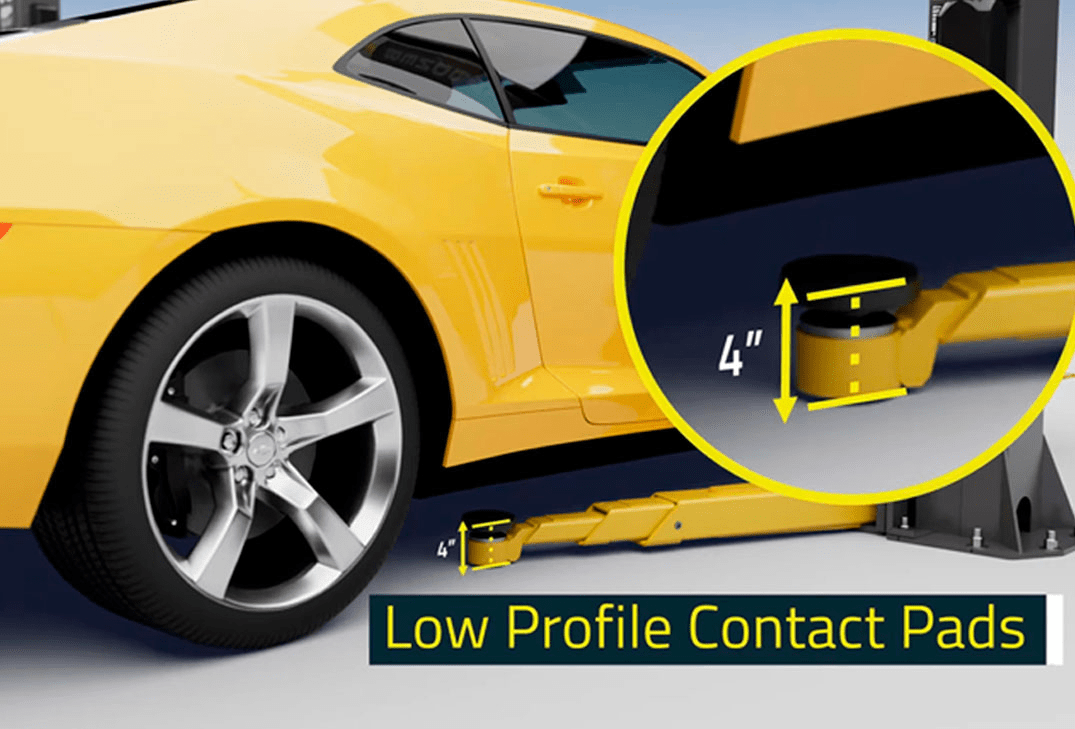

Rise	Minimum Height + Pad	4″ / 102 mm

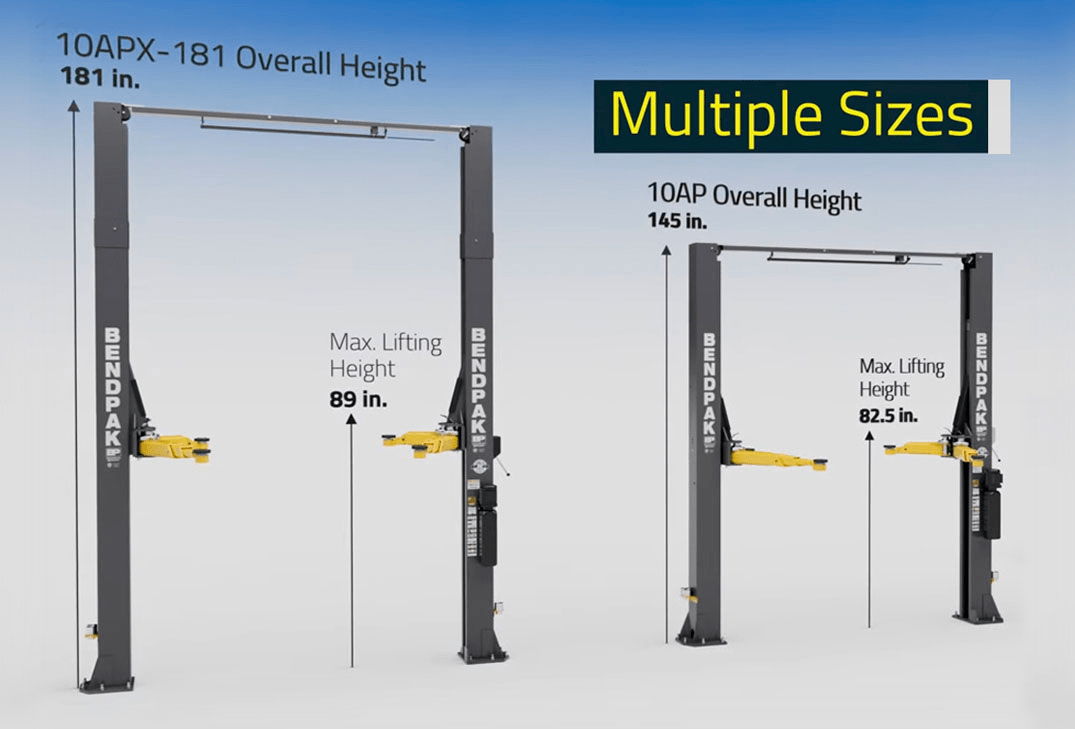

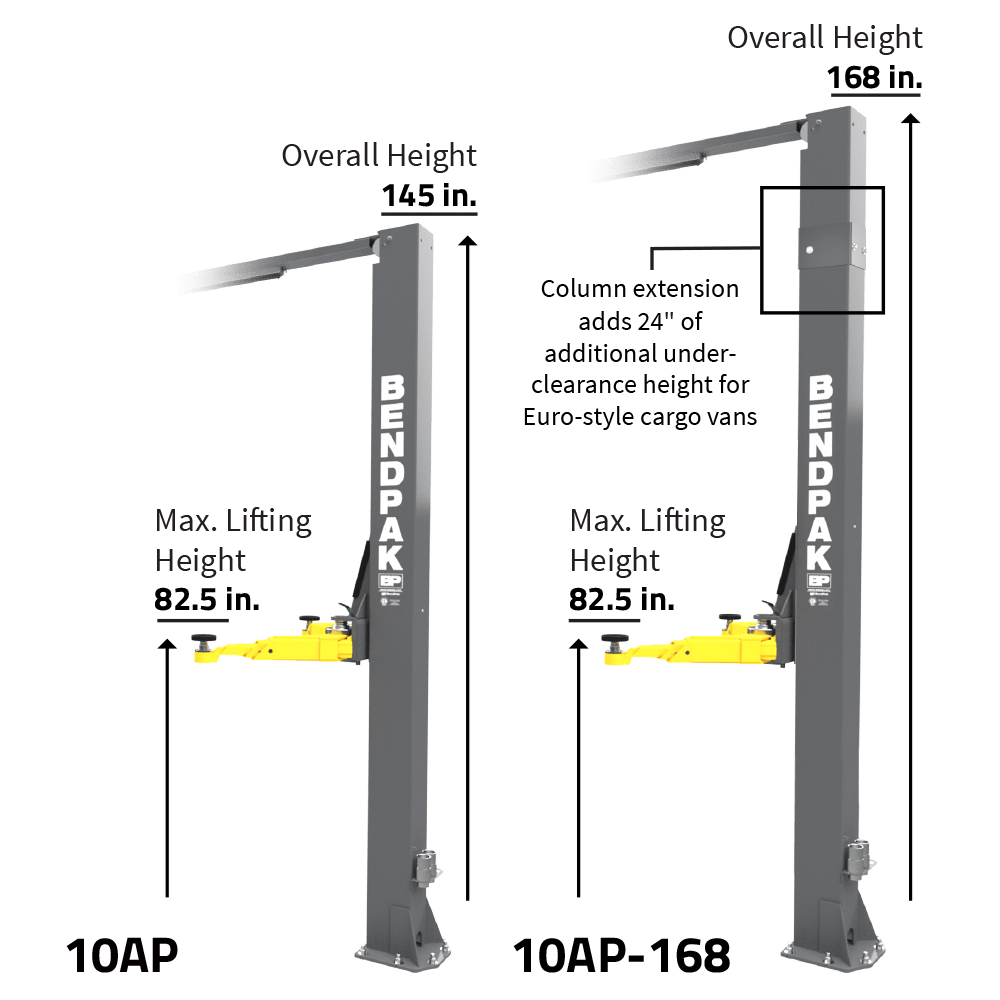

Dimensions	Overall Height	145″ / 3,683 mm
Dimensions	Overall Width	135″ or 145″
Clearance	Drive-Thru Clearance	97.5″ or 107.5″
Arms	Front Arm Reach	24.5″ min / 50″ max
Arms	Rear Arm Reach	32″ min / 59.25″ max
Power	Motor	220 VAC, 60 Hz, 1 Phase
Power	Noise	<70 dB

✓ ALI Certified
✓ Professional Grade
✓ Heavy-Duty Equalizer Cables
✓ Safety Locks Every 3″
✓ Fast Nationwide Shipping
