Name: 10,000 lbs Car Lift L1100 2 Post overhead Car Auto Truck Hoist 220V OR 110V
SKU: 17
Availability: InStock

10,000 lbs Car Lift L1100 2 Post overhead Car Auto Truck Hoist 220V OR 110V

Auto Car Lift L1100 220 volt. Auto Car Lift L 1100. • Overhead Area: The area where the lift will be located should be free of overhead obstructions

Overhead Clear Floor 2-Post Lift

L1100 10,000 lb
Auto Truck Hoist

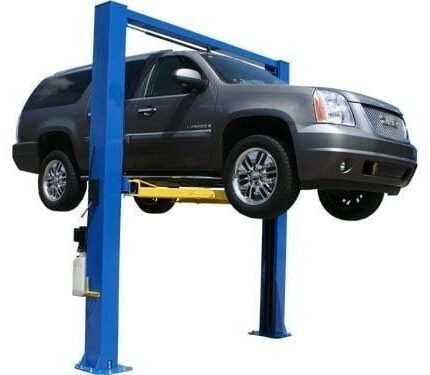

The L1100 is a heavy-duty 2-post overhead clear floor lift engineered for professional garages, auto repair shops, and serious home workshops. With 10,000 lb lifting capacity, 220V power, symmetrical arms, truck adapters, and advanced safety systems, it delivers dependable lifting performance for cars, trucks, and passenger vehicles.

10,000

lb Capacity

Strong lifting performance for passenger vehicles, trucks, and shop use.

220V

3HP Motor

220V, 60Hz, single phase power system for reliable operation.

78.8″

Max Lift Height

Designed to provide excellent working access under the vehicle.

100″

Drive-Thru Clearance

Clear floor layout helps maximize bay usability and workflow.

Built for safer lifting

Clear Floor Design. Heavy-Duty Structure. Smooth Control.

The L1100 features symmetrical arm assembly, drop-in lifting pads, truck adapters, automatic arm lock restraints, double point safety lock release, and an overhead clear floor design that keeps the working area open and efficient.

🛡

Double Point Safety Lock Release
Designed to improve operator control and lifting confidence.

⚙

220V Hydraulic Power System
Press the “UP” button to lift and use manual lever lowering.

🚘

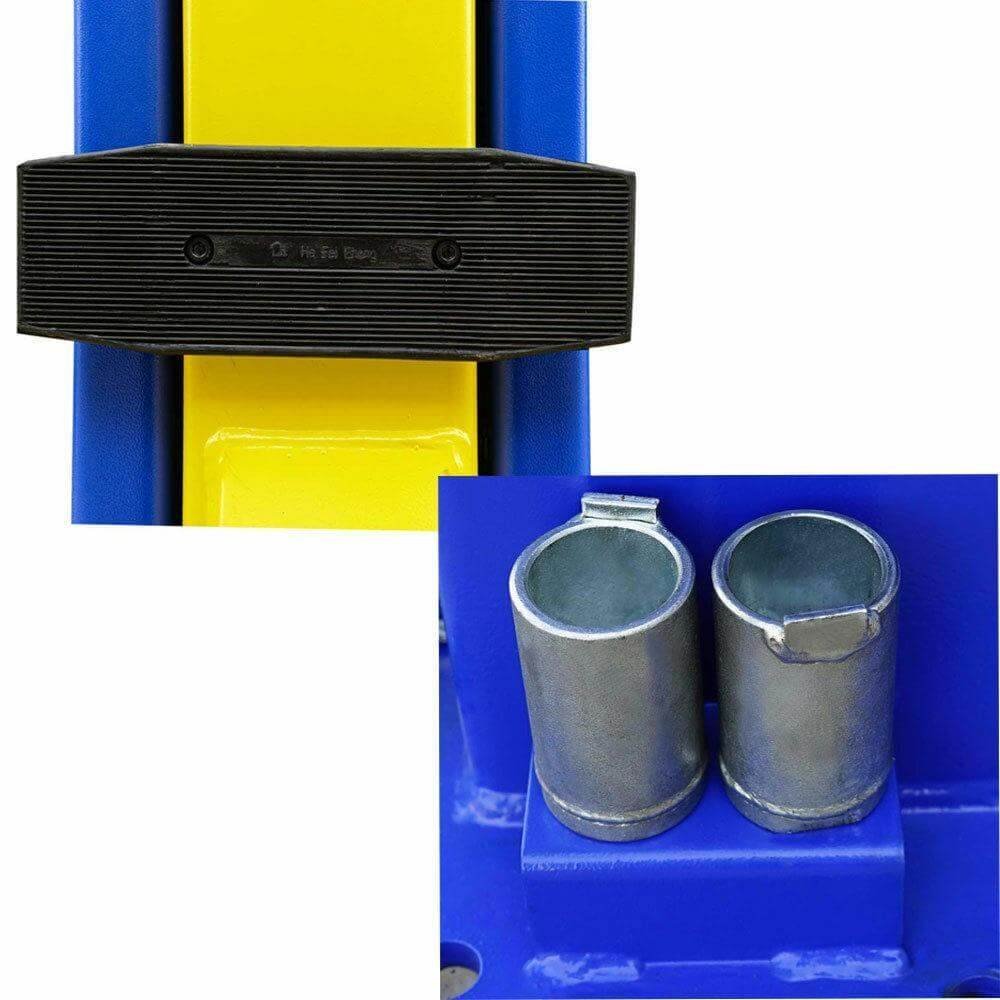

Truck Adapters Included
Includes drop-in lifting pads and one set of truck adapters.

Premium Features

Designed for Daily Garage Performance

🔒

Automatic Arm Lock Restraints

Helps keep lifting arms secured during vehicle service.

🧯

Overload Protection

Built-in relief valve in the power pump helps prevent overloading.

🛞

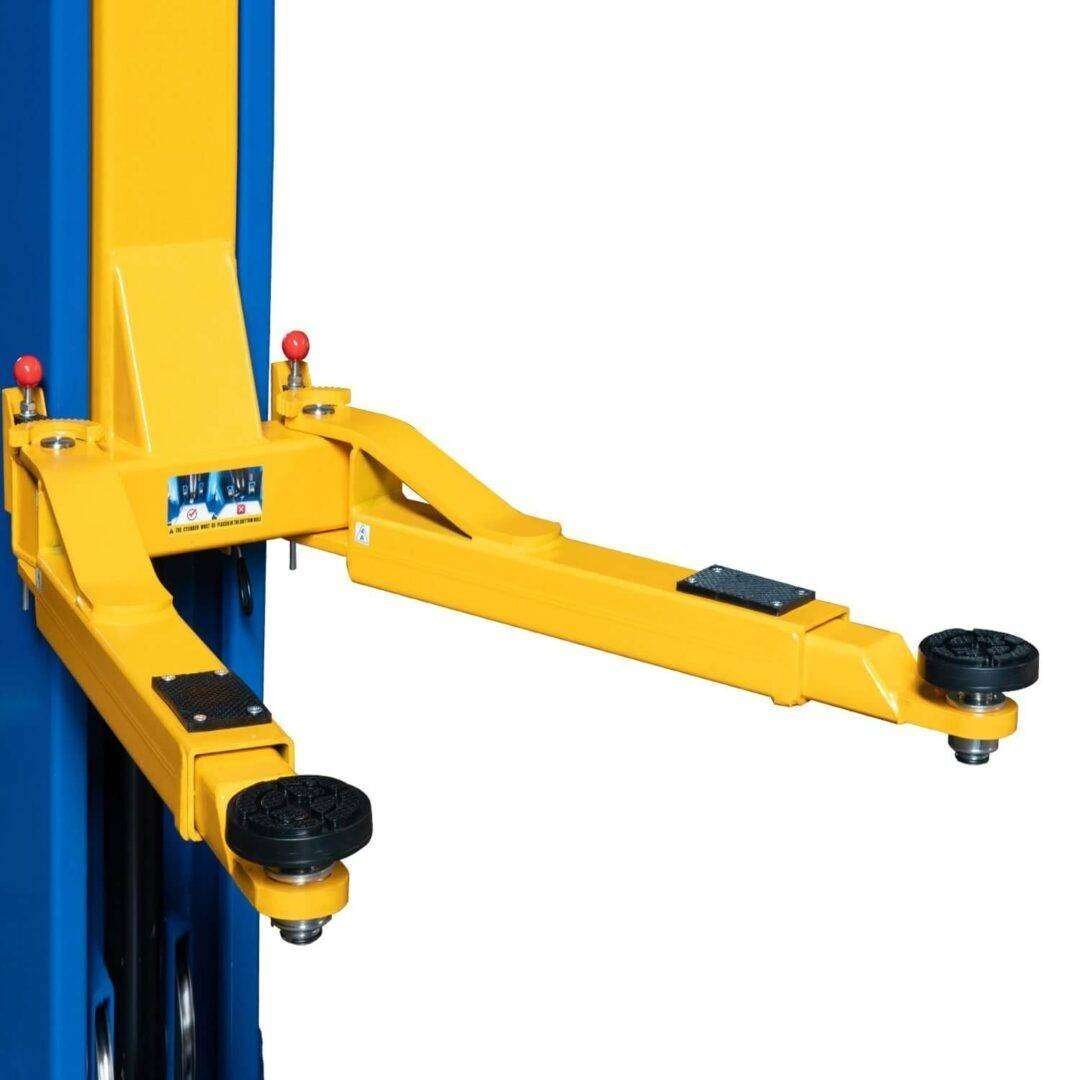

Symmetrical Arm Assembly

Straight front and rear 2-stage arms with equal-length design.

🏗

Reinforced Base Plate

Stiffened 5/8″ base plate supports a stable installation foundation.

🔧

Mounting Hardware Included

Anchor bolts and mounting hardware are included for installation.

⚙️

Smooth Carriage Movement

Ultra-high molecular self-lubricating nylon sliders help carriages move smoothly.

Technical Specifications

L1100 Product Specs

Category	Specification	Value
Capacity	Lifting Capacity	10,000 lbs
Power	Motor	220V / 60Hz / 1 Phase / 3HP
Dimensions	Overall Height	145-5/8″
Dimensions	Overall Width	133-1/4″
Clearance	Drive-Thru Width Clearance	100″
Lift Range	Minimum Pad Height	3-7/8″
Lift Range	Maximum Lift Height	78-7/8″
Arms	Front Arm Reach	30.7″ to 48″
Arms	Rear Arm Reach	30.7″ to 48″
Structure	Column Steel Thickness	3/16″
Structure	Base Plate Thickness	5/8″
Shipping	Shipping Weight	1,460 lbs

Installation Requirements

Before Installing Your Lift

Electrical Source

Requires a 220V, 30 amp, single phase, grounded electrical source.

Overhead Clearance

Installation area should be free of heaters, supports, electrical lines, doors, lights, and other obstructions.

Concrete Floor

Install on reinforced concrete only. Do not install on asphalt, cracked concrete, or defective surfaces.

Concrete Strength

8,500–10,000 lb lifts require 3,000 PSI reinforced concrete with 4″ minimum thickness.

✓ 10,000 lb Capacity
✓ Truck Adapters Included
✓ Overhead Clear Floor
✓ Mounting Hardware Included
✓ Fast Nationwide Shipping
